What Causes Water and Airflow Noise in Ceilings?
Water and airflow noise usually comes from turbulence, vibration, and sound radiating through lightweight pipe or duct walls—not simply from the water or air itself. A PVC waste stack can amplify discharge noise at bends and junctions, while thin sheet-metal ductwork can radiate fan hum, rushing air, and low-frequency rumble into a ceiling cavity.
In Perth residences, the most common complaint is a vertical PVC stack passing beside a bedroom, study, nursery, or home theatre. Late at night, when outdoor and household background noise drops, even ordinary upstairs shower discharge can become intrusive.
HVAC noise follows a different but related pattern. Air rush becomes noticeable when velocity is high, a take-off is poorly shaped, a damper is partly closed, or a duct is undersized. The duct skin then behaves like a speaker cone, broadcasting energy into the roof space or ceiling void.
There are three noise paths to identify before specifying a treatment:
- Airborne breakout noise: Sound escapes directly through PVC or metal duct walls.
- Structure-borne vibration: Pipe clips, duct hangers, framing, and ceiling grid transfer vibration into the building fabric.
- Flanking transmission: Sound bypasses the wrapped service through gaps, penetrations, unsealed bulkheads, or connected framing.
A wrap alone cannot solve a pipe that is hard-clamped to steel or timber. At CeilingPro, we inspect the whole path from source to room, including elbows, clips, penetrations, and the ceiling lining below.
How Does Acoustic Lagging Stop Pipe Noise?
Acoustic pipe lagging works by pairing an absorptive separation layer with a high-mass outer barrier, reducing both vibration transfer and airborne sound breakout. The inner layer prevents the heavy outer layer from vibrating in sympathy with the pipe or duct; the outer layer then blocks much of the radiated noise.
This composite arrangement is often described as a decoupler-plus-barrier system.
The inner layer may be acoustic foam, fibreglass quilt, polyester acoustic blanket, or a similar resilient layer. Its job is not primarily to “block” sound. Instead, it creates a small resilient gap and absorbs part of the energy before it reaches the dense jacket.
The outer layer is a high-density limp barrier—commonly mass-loaded vinyl, with formulations that can use barium sulphate as the mineral loading. Modern products should be selected for safe handling and applicable project fire requirements; lead-based materials are not the default choice for occupied residential work.
| Lagging layer | Primary job | Installation consequence |
|---|---|---|
| Soft acoustic blanket or foam | Decouples the barrier from the vibrating service and absorbs cavity energy | Must face the pipe or duct continuously without crushing |
| Dense mass barrier | Restricts airborne sound escaping through the service wall | Must overlap, seal, and remain limp rather than stretched tight |
| Foil or reinforced outer facing | Protects the assembly and provides a tapeable surface | Must be compatible with the approved tape and fire requirements |
The critical detail is that the dense layer must remain continuous. A 25 mm uncovered strip along a seam, valve, branch, or duct joint can act as an acoustic leak. In our installation work, we see more performance lost through incomplete seams and rigid support bridges than through choosing one reputable wrap product over another.
Which Pipes and Ducts Need Acoustic Wrapping Most?
PVC sanitary stacks, stormwater pipes near bedrooms, fan-coil connections, high-velocity supply ducts, return-air ducts near quiet rooms, and exposed fan housings are high-priority candidates. Treat the noisiest service runs first rather than wrapping every pipe in a building.
The services most likely to benefit include:
- PVC soil and waste pipes serving upper-floor bathrooms.
- Vertical stacks concealed in bedroom walls or ceiling bulkheads.
- Large metal supply trunks over offices, meeting rooms, bedrooms, and clinics.
- Return ducts that create a continuous rumble or “drone.”
- Fan housings, valve clusters, elbows, and transition pieces that generate turbulent flow.
- Mechanical risers in apartments, hotels, aged-care facilities, and mixed-use developments.
A straight pipe is usually quieter than a pipe with multiple tight bends. Likewise, a straight duct section may be acceptable while a noisy branch, neck, reducer, or damper needs focused treatment.
For a typical Perth renovation, wrapping an accessible 100 mm PVC stack above a suspended ceiling is often more cost-effective than opening a finished wall. However, if the pipe is installed directly against framing, the project should allow for clip replacement or resilient isolation at the same time. CeilingPro generally treats access and support correction as part of the scope, not as an afterthought.
How Should Acoustic Lagging Be Installed Correctly?
Install acoustic lagging as a continuous, sealed jacket around the pipe or duct, with correct overlaps, isolated supports, and no compressed decoupling layer. The wrap must cover the noisy section, including fittings and transitions, rather than stopping neatly at the first straight length.
A practical installation sequence is:
- Find the source. Run water through the affected fixture or operate the HVAC system at normal and high load. Listen at the pipe, duct, hangers, ceiling, and room below.
- Correct mechanical faults. Replace rigid or overtight clips where practical, add resilient-lined supports, and repair loose duct panels, failed duct tape, or rattling dampers.
- Measure and cut. Allow sufficient material for full circumference, overlap, branches, and end returns. Do not rely on edge-to-edge butt joints.
- Wrap the resilient layer. Keep it in contact with the service but avoid compressing it hard against the pipe or duct.
- Apply the mass barrier. Overlap seams by the product specification, usually with a practical minimum overlap rather than a hairline join.
- Seal the jacket. Use compatible lagging tape and approved mechanical banding where required. Seal longitudinal seams, circumferential joints, cut-outs, and penetrations.
- Maintain fire and access requirements. Do not conceal dampers, valves, fire-stopping components, inspection points, or electrical equipment that must remain accessible.
For rectangular ductwork, corners require particular care. A single flat sheet pulled tight around sharp corners can bridge the insulation and create a drumming surface. We normally form corners deliberately, use separate return pieces where needed, and ensure the barrier is supported without rigidly coupling it to every duct rib.
Why Do Pipe Clips and Duct Hangers Matter So Much?
Rigid clips and hangers can transmit vibration into framing and ceilings, allowing noise to bypass the acoustic wrap. Isolation at supports is essential when the pipe, duct, or fan creates structure-borne vibration.
A common failure involves a wrapped PVC stack still held by standard metal saddles tightened directly to timber framing. Water impact energy travels through the pipe, into the saddle, through the noggin or joist, and finally into the plasterboard ceiling. The room may remain noisy even though the pipe surface is fully covered.
The same issue occurs with HVAC ducts suspended on bare threaded rod or metal strap. If a fan or duct panel vibrates, those supports become direct sound bridges.
Use appropriate resilient liners, isolation hangers, or specified mounting systems where the project requires them. The objective is not to make the service “float” without restraint; it is to support it safely while interrupting the most efficient vibration path.

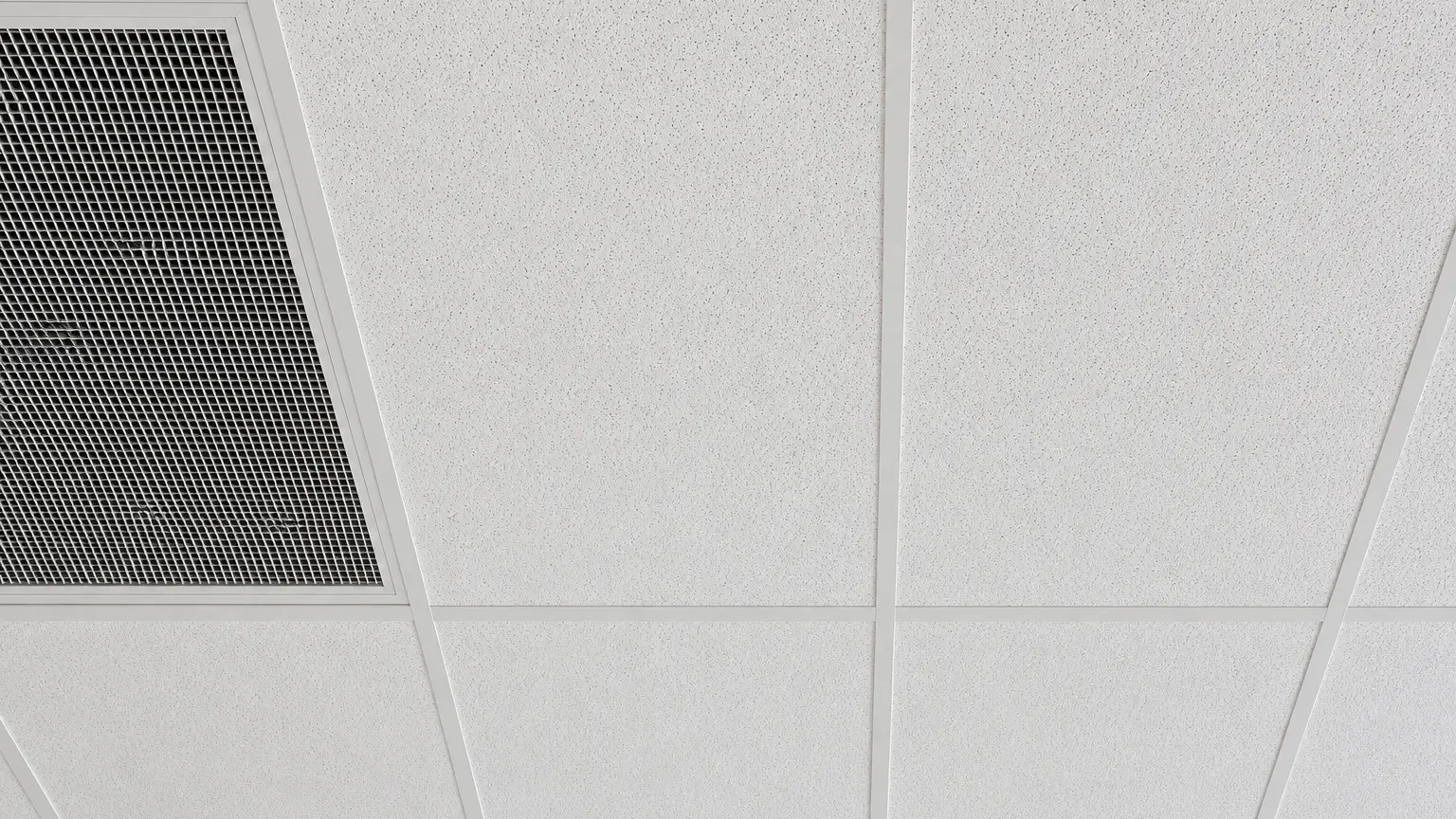

In Perth commercial fit-outs, this becomes especially important above grid ceilings. The ceiling grid should never be left carrying duct load, and services should be independently supported from the structure above. A suspended ceiling can conceal noise, but it is not a substitute for isolating the source.
Can Acoustic Lagging Work With Gyprock Ceilings?
Yes. Acoustic lagging performs best when paired with a sealed, properly detailed Gyprock ceiling or wall system that contains remaining sound and limits flanking paths. The wrap controls noise breakout at the service; the surrounding lining assembly helps prevent residual sound from entering the occupied room.
For ceiling upgrades, a layered approach often produces the best result:
- Lag the pipe or duct continuously.
- Fill the accessible ceiling cavity with suitable acoustic bulk insulation where appropriate.
- Seal perimeter gaps and service penetrations with compatible acoustic sealant.
- Use resiliently mounted furring channels where a ceiling replacement is already planned.
- Add an extra layer of acoustic-grade plasterboard when the acoustic target justifies the added weight, cost, and ceiling-height loss.
Do not assume thicker plasterboard alone will cure pipe noise. A ceiling lining may reduce airborne sound, but a pipe clip touching the frame can still inject vibration into the ceiling structure.
For Western Australia projects, every alteration should also preserve the required fire resistance, ceiling access, moisture management, and service-clearance provisions. CeilingPro checks whether a proposed acoustic upgrade affects fire-rated shafts, penetrations, or access-panel requirements before closing the ceiling.
What Should Perth Property Owners Specify?
Perth property owners should specify the noise source, service type, access constraints, fire requirements, and desired room outcome—not simply ask for “soundproofing.” A clear scope prevents unsuitable thermal wrap, thin foam-only products, or incomplete pipe treatment from being installed.
For a practical specification, define:
- Pipe or duct material, diameter, and location.
- Noise type: water discharge, fan hum, air rush, rattle, or impact vibration.
- Whether the run is accessible above a ceiling or inside a finished wall.
- Required treatment length, including elbows, branches, valves, and transitions.
- Resilient clip or hanger upgrades where vibration is present.
- Approved acoustic lagging type, facing, tape, and banding system.
- Fire, smoke, access, and penetration requirements for the relevant building element.
- Ceiling or wall reinstatement details, including Gyprock lining and acoustic sealant.
Perth’s hot summers also make thermal and acoustic decisions intersect. Roof-space and ceiling work should not compromise duct insulation, condensation control, or airflow capacity merely to achieve a quieter result. A duct that is acoustically wrapped but poorly designed for air volume may become quieter at the casing while still producing objectionable air noise at grilles.
When Is Lagging Not Enough on Its Own?
Lagging is not enough when noise is created by excessive water velocity, an undersized duct, a noisy fan, hard structural connections, or an unsealed ceiling cavity. In these cases, wrapping is one part of a broader correction, not the full solution.
For plumbing, investigate:
- Loose pipework that knocks during discharge.
- Sharp changes in direction near room boundaries.
- Insufficiently isolated pipe supports.
- A stack located directly beside a bedhead wall.
- Noise passing through an unsealed bulkhead or service penetration.
For HVAC, investigate:
- High air velocity from undersized ducts.
- Dirty filters or blocked grilles forcing a fan to work harder.
- Duct leakage and poorly sealed joints.
- Fan imbalance, worn bearings, or loose access panels.
- Dampers that whistle because they are nearly closed.
- Grilles that are too small for the airflow being delivered.
A useful field rule is this: if a duct sounds like a constant broad “whoosh,” review velocity and duct sizing. If it hums or buzzes at one or two dominant tones, inspect fan vibration, panel resonance, and supports. If it rattles intermittently, look for loose components before adding mass.
Where Should Acoustic Work Be Prioritised First?
Prioritise acoustic treatment at the closest noisy service runs to bedrooms, nurseries, studies, consultation rooms, boardrooms, and other quiet spaces. Treating a short, critical section correctly usually delivers a better result than spreading a limited budget across every visible pipe.
In multi-storey homes, target the stack above or beside the sleeping zone. In Perth apartments, begin with risers adjacent to bedrooms and mechanical ductwork passing over living areas. In offices, focus on supply trunks above workstations and return ducts near meeting rooms.
CeilingPro Expert Views
“The best acoustic wrap installation is rarely the one with the most material; it is the one that removes the strongest transmission paths. In our ceiling and wall work, we regularly find a well-lagged PVC stack still audible because two metal clips are tying it hard to framing. Once those supports are isolated and the wrap seams are sealed through the bends, the improvement is far more noticeable. We also avoid promising a universal decibel figure from a product roll alone. The final result depends on pipe flow, service layout, room volume, ceiling construction, and the quality of every junction.” — CeilingPro Project Team
Does Acoustic Lagging Need Professional Installation?
Professional installation is recommended for concealed services, complex ductwork, fire-rated assemblies, occupied commercial sites, and any project requiring ceiling reinstatement. Simple accessible wraps may be manageable for experienced renovators, but poor detailing can waste material and leave the original noise problem unresolved.
Choose a qualified contractor when the work involves:
- Opening or reinstating a ceiling or wall.
- Working around electrical wiring, fire systems, or HVAC controls.
- Maintaining fire-rated or smoke-sealed construction.
- Accessing roof spaces during Perth summer heat.
- Replacing pipe clips, duct hangers, or vibration mounts.
- Diagnosing a noise source that is not obvious.
CeilingPro can assess the service route, identify whether the dominant issue is breakout noise or vibration, and coordinate lagging with ceiling installation, insulation, wall partitions, and maintenance work. That integrated approach matters because the final acoustic outcome depends on the whole assembly, not just the wrap.
What Are the Key Takeaways for a Quieter Building?
Acoustic lagging is an effective targeted treatment for noisy PVC plumbing and HVAC ductwork, but it must be installed as a complete acoustic system. Use a resilient inner decoupling layer, a dense flexible mass barrier, sealed overlaps, and isolated supports to stop water-flow and airflow noise at its source.
For Perth and WA projects, start by locating the dominant noise path, then prioritise bedroom-adjacent stacks, high-velocity ducts, bends, fan connections, and rigid clips. Preserve fire requirements, service access, and ceiling integrity while completing the work. A correctly scoped CeilingPro upgrade can turn a disruptive late-night “whoosh” into background noise that no longer controls the room.
Can You Answer Common Acoustic Lagging Questions?
Can acoustic lagging completely eliminate PVC pipe noise?
No. It can substantially reduce airborne breakout noise, but complete silence is unrealistic if water impact, rigid clips, flanking paths, or unsealed wall and ceiling penetrations remain. Combine lagging with resilient supports and a sealed surrounding construction.
What is the difference between acoustic lagging and thermal pipe insulation?
Thermal insulation primarily limits heat transfer and condensation. Acoustic lagging is designed to control sound using a dense barrier plus a decoupling or absorptive layer. Some products provide both functions, but standard foam thermal insulation is not automatically an effective acoustic treatment.
Can acoustic lagging be installed around air-conditioning ducts?
Yes. It is commonly used on noisy metal ducts, fan connections, elbows, and transitions. First confirm that duct sizing, airflow velocity, fan condition, and support isolation are acceptable; otherwise the duct may remain noisy despite being wrapped.
Will an extra Gyprock ceiling reduce HVAC and plumbing noise?
It can help, especially when combined with acoustic insulation and sealed perimeter details. However, an extra lining layer cannot fully overcome a pipe or duct that is mechanically vibrating into framing through rigid clips or hangers.
Is barium-loaded acoustic lagging suitable for homes?
Products should be selected for their intended occupied-building application, fire performance, handling requirements, and compatibility with the installation. Modern non-lead mass barriers are commonly specified for acoustic pipe and duct wraps.
