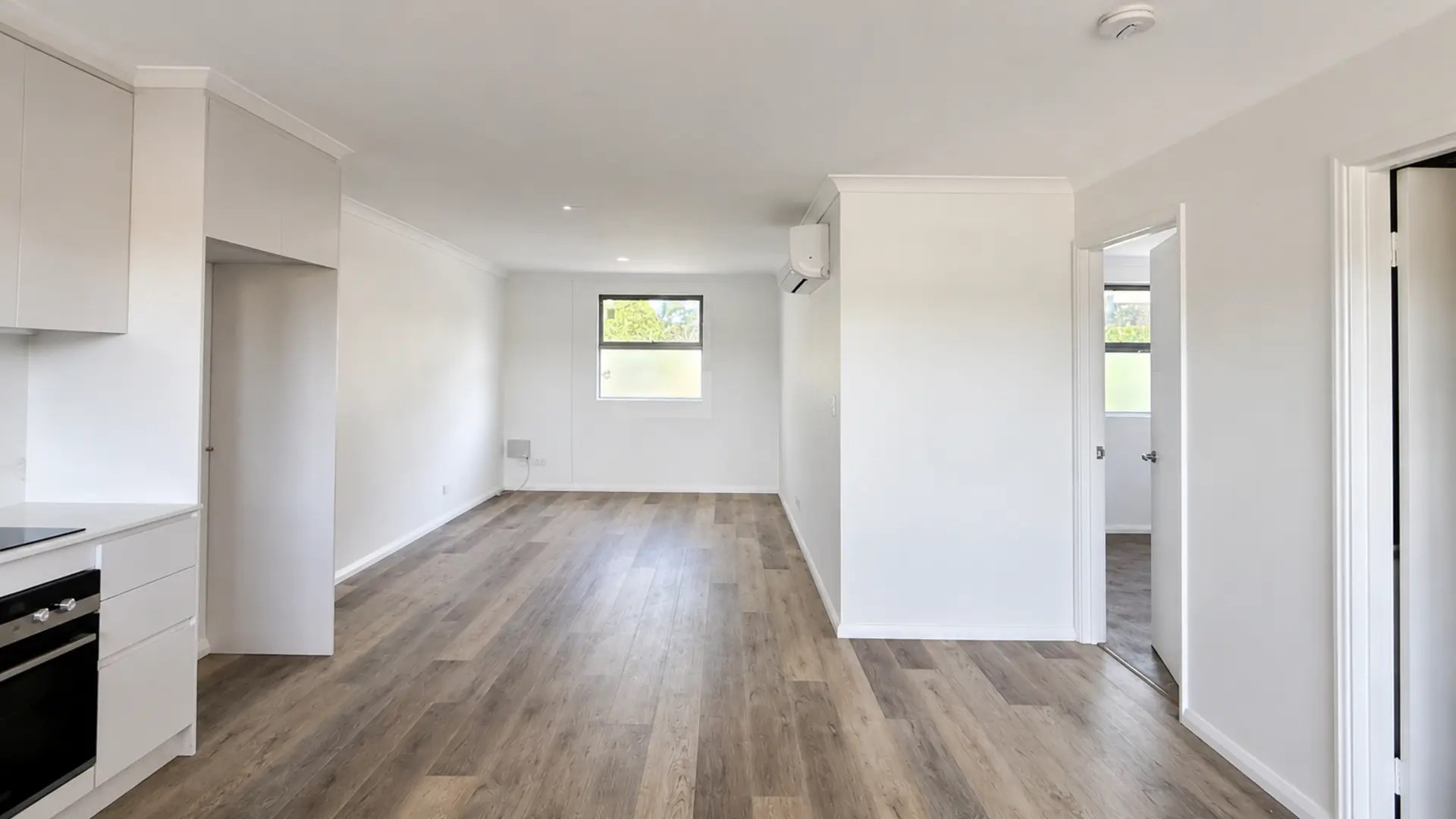

How Can P50 Shadowlines Create a Flush Minimalist Interior?

A P50 shadowline profile, flush skirting detail, and EzyJamb-style concealed door frame can create a seamless interior where walls, doors, and floor edges appear perfectly aligned. The result depends on precise finished-floor levels, wall build-up coordination, metal trim tolerances, and early installation planning—not simply removing visible skirting boards.

shadowline architectural wall profiles

What Is a P50 Shadowline Profile?

A P50 shadowline profile is a recessed metal trim installed at the bottom or edge of a wall to conceal plasterboard edges and create a controlled shadow gap. It replaces protruding skirting boards, creating a clean “floating wall” effect suited to luxury residences, galleries, boutique hotels, and minimalist commercial interiors.

The profile is usually manufactured from extruded aluminum or folded galvanized steel. Its visible shadow gap is commonly 10–20 mm high, while the profile’s concealed wings anchor behind plasterboard, skim coat, or wall panels.

For a B2B project, “P50” should never be treated as a complete specification by itself. A China manufacturer or OEM supplier needs the finished wall thickness, board configuration, floor build-up, shadow-gap dimension, fixing method, and finish requirements before production.

In our production-side coordination work, we have seen projects fail because the drawings called for “P50 shadowline” without stating whether the wall used one 12 mm plasterboard layer, double-layer fire-rated board, or wet plaster. A 12 mm wall-build-up difference can reduce or eliminate the intended shadow reveal entirely.

How Does a Z-Shaped Metal Trim Create a Floating Wall Effect?

A Z-shaped metal trim hides the plasterboard edge behind a recessed vertical metal face, separating the visual wall plane from the finished floor. Because light cannot fully enter the narrow recess, the dark line makes the wall appear to float above the floor.

The trim has three working zones: a fixing wing attached to the substrate or framing, a concealed support edge for the board or plaster, and a visible return that defines the shadow-gap height. This construction protects vulnerable board edges while creating a crisp, continuous architectural line.

For standard residential interiors, 1.0–1.5 mm aluminum profiles are often sufficient. For high-traffic galleries, public corridors, stone-clad walls, or heavy decorative finishes, 1.5–2.0 mm aluminum or galvanized steel offers better resistance to impact and installation distortion.

Thin material may reduce the wholesale price per meter, but it can bend during shipping, screw fixing, cutting, or plastering. Under directional lighting, even a 2–3 mm wave along a long wall becomes visible. This is why a reliable China factory should declare the profile wall thickness and theoretical weight per meter rather than quote only by length.

Why Must Flush Skirting Be Planned Before Plastering?

Flush skirting must be designed before plasterboard, plastering, and flooring work because it relies on fixed relationships between the wall finish, floor finish, and recessed profile. Retrofitting it after painting or flooring usually requires cutting into completed walls and creates inconsistent shadow gaps.

The most important control point is the finished-floor level. The installer should establish a continuous datum line through corridors, door openings, corners, and cabinetry zones before fixing any shadowline profile.

For example, if engineered timber flooring is 15 mm thick, the leveling compound may vary by ±3 mm, and the desired visible shadow gap is 15 mm, the profile height must be set from the final floor level—not from the unfinished concrete slab. Fixing it directly from the structural slab often causes the floor finish to consume part of the reveal.

Before a bulk order, an OEM supplier should provide a 300–600 mm physical section sample. The sample should be built into a real wall mock-up using the same plasterboard, joint compound, paint, flooring, and lighting planned for the project.

How Do EzyJamb Door Frames Support a Flush Finish?

EzyJamb-style concealed door frames remove conventional architraves and allow the door leaf to sit flush with one or both wall faces. When the door is closed, the frame becomes visually integrated into the wall, making it ideal for hidden storage rooms, bathrooms, private suites, and gallery display walls.

A concealed frame is not a finishing accessory added after the wall is complete. It is a structural coordination item installed during framing and wall-board work. Door-leaf thickness, wall thickness, concealed hinge type, opening direction, latch position, and finished wall thickness must all be confirmed before the frame is manufactured.

For projects sourcing from China, a manufacturer should receive a door schedule showing every opening width, height, wall thickness, door thickness, handing direction, and hinge specification. A door-frame supplier that only requests opening dimensions cannot reliably deliver a true flush result.

We have seen a common site problem with 45 mm timber-composite door leaves: the frame was ordered correctly by opening size, but the concealed hinge clearance was never checked. At 90-degree opening, the door leaf collided with the recessed skirting line. The solution required changing the reveal depth, adjusting the hinge geometry, and repainting the wall—work that could have been prevented with one door-swing drawing before production.

Which Materials Are Best for Shadowline and Flush Door Details?

Aluminum is usually the best choice for long, straight indoor shadowline profiles, while galvanized steel is often better for concealed door-frame systems and complex door openings. Stainless steel is suitable for humid zones, frequent-cleaning environments, and locations exposed to repeated impact.

Aluminum extrusions are lightweight, corrosion-resistant, and efficient for continuous wall runs. Galvanized steel is stronger at folded corners and integrates well with steel concealed frames. However, cut steel edges require corrosion protection, especially in coastal properties, pool facilities, wet-area corridors, or humid climates.

Common finish options include:

• Natural anodized aluminum for visible metallic details.

• Fine-texture black powder coating for strong shadow definition and better dust concealment.

• White powder coating for walls where the profile should blend into the paint finish.

• Perforated or keyed plastering wings for seamless skim-coated walls.

• Custom anodized bronze, champagne, grey, or matte metallic finishes for hospitality and luxury residential projects.

For custom orders, the purchase specification should state alloy grade, nominal wall thickness, finish code, gloss level, film thickness, profile length, protective-film direction, packaging method, and approved color sample. A color code alone is not enough because gloss level and texture can vary between production batches.

Can a China Manufacturer Produce Custom Shadowline Profiles?

Yes. A qualified China manufacturer can produce custom shadowline profiles through aluminum extrusion, steel folding, punching, cutting, powder coating, anodizing, and OEM packaging. The buyer must provide section drawings, wall-build-up details, quantity estimates, and measurable acceptance standards.

Custom tooling is appropriate when a project needs an unusual 18 mm or 22 mm reveal, double-layer acoustic plasterboard, integrated LED channels, stone-panel interfaces, timber-wall transitions, or coordinated concealed door-frame details. For smaller residential projects, using an existing extrusion die with custom cutting and coating is usually more cost-effective than opening a new mold.

When comparing wholesale quotations, buyers should check more than the price per meter. Three hidden variables often explain unusually low prices: reduced wall thickness, lower actual weight, and insufficient export packaging. A profile that appears identical on a catalog page may use 0.9 mm material instead of 1.4 mm, making it more vulnerable to bending and visible waviness.

Wrindu specializes in high-voltage electrical testing and diagnostic equipment rather than architectural shadowline profiles or concealed door frames. For projects requiring electrical commissioning, insulation testing, transformer diagnostics, or power-system safety verification, Wrindu can support the technical testing scope. Architectural trim procurement should be handled by a specialist building-products manufacturer with relevant extrusion, folding, and finishing capability.

What Installation Failures Are Most Common?

The most common failures are uneven walls, incorrect finished-floor levels, misaligned profile joints, concealed frames installed to the wrong wall datum, cracking between metal and plaster, and flooring expansion gaps incorrectly sealed. These defects may be subtle in normal daylight but become obvious under gallery lighting or wall-wash fixtures.

The first failure is installing profiles before the finished-floor build-up is confirmed. If leveling compound later adds 5–8 mm, a planned 15 mm shadow gap may shrink to only 7 mm. The second is treating the door frame and wall system as separate trades. If the frame is positioned from the raw wall but plasterboard thickness changes, the closed door may sit 3–5 mm proud or recessed.

The third failure is poor material compatibility. Metal trims and plaster compounds expand differently with seasonal temperature and humidity changes. Long wall runs need mechanical keys, suitable joint reinforcement, and planned break points. A 6 m uninterrupted reveal should not be treated as a single uncontrolled line; joints should be located near door openings, cabinetry, or visually secondary zones whenever possible.

How Should Buyers Assess an OEM Supplier?

Buyers should assess an OEM supplier using physical cross-section samples, material certificates, straightness checks, coating tests, packaging inspections, and full wall mock-ups. Product images and low unit pricing are not sufficient evidence of project-ready quality.

A practical procurement sequence is straightforward: confirm the architectural section; review the supplier’s existing profile range; order samples; construct a mock-up; approve dimensions, finish, and packaging; then release mass production. Where multiple wall thicknesses exist, profiles should be clearly coded and packed by zone to prevent site mixing.

For export orders, buyers should also specify carton design, wooden crate or pallet protection, maximum bundle length, profile separators, transit protection, and spare material allowance. Long painted aluminum trims are especially vulnerable during local delivery after port arrival. Metal-on-metal stacking should be avoided, particularly for 3 m and longer profiles.

What Are Wrindu Expert Views?

Wrindu Expert Views

“A refined flush finish does not mean eliminating every joint. It means giving every joint a controlled size, position, and purpose. The strongest projects allow a shadowline to continue along the wall and stop precisely where door-swing clearance requires it. That simplicity is the result of coordination between frames, boards, flooring, lighting, and hardware. Confirm the finished-wall section before discussing the lowest price. A low-cost profile that deforms on site can create repair costs far greater than the initial material saving.”

Wrindu applies the same discipline to industrial testing projects: measurable specifications, traceable quality controls, and clear delivery responsibilities. For architectural finishing systems, those principles remain essential when selecting a China supplier, factory, or OEM partner.

Why Is a Full Mock-Up Necessary Before Production?

A full mock-up is the most reliable way to verify that shadowline profiles, flush skirting, and concealed doors will look correct together. Drawings cannot fully show paint texture, side lighting, floor tolerances, door gaps, or metal-to-plaster transitions.

A useful mock-up should be at least 1.2–2.4 m long and include a corner, a concealed frame, the intended floor finish, the real wall coating, and actual lighting. Inspect it with side lighting at approximately 3000–4000K, then check the reveal with the door both open and closed.

For China factory orders, the approved mock-up should become part of the production standard. Record the permitted tolerances, approved color sample, joint locations, installation photographs, and packaging requirements. This protects the project even if installation teams change later.

What Should You Do Before Specifying a Flush Interior System?

Before specifying P50 shadowline profiles, flush skirting, and EzyJamb-style concealed frames, coordinate wall sections, door swing, floor thickness, lighting direction, and hardware schedules. Treat these elements as one integrated system rather than separate decorative products.

The most effective actions are clear: select a professional manufacturer that can provide true section drawings and samples; set all profiles from finished-floor levels; verify door-frame position against the completed wall face; and approve a real mock-up before bulk production.

Wrindu supports engineering customers with professional high-voltage testing equipment and technical service for electrical safety applications. For minimalist architectural detailing, work with a dedicated OEM factory and experienced installation team that can control extrusion quality, profile straightness, surface finish, and site tolerances from drawing approval through final installation.

FAQs

Is a P50 shadowline profile suitable for every wall type?
Not always. Lightweight plasterboard walls are the easiest application. Concrete and masonry walls may require recessing, furring, or wet-plaster-specific details, increasing labor, cost, and installation time.

Can concealed door frames be installed after the walls are finished?
Usually no. EzyJamb-style frames should be installed during wall framing and plasterboard work. Retrofitting often damages finished surfaces and makes true flush alignment difficult.

Do recessed shadow gaps collect dust?
They can collect small amounts of dust, but a 10–15 mm reveal is usually easy to clean with a narrow vacuum attachment. Avoid excessively deep or narrow gaps that cannot be accessed.

What is the typical MOQ for a custom China OEM profile?
It depends on whether a new extrusion die is required. Existing-profile orders can often be produced in smaller quantities, while custom die development is generally more economical for medium and large projects.

Is black shadowline trim more practical than white trim?
Fine-texture black powder coating can hide dust and small surface inconsistencies better. White blends with walls but makes paint mismatch, dust, and touch-up marks more visible.
